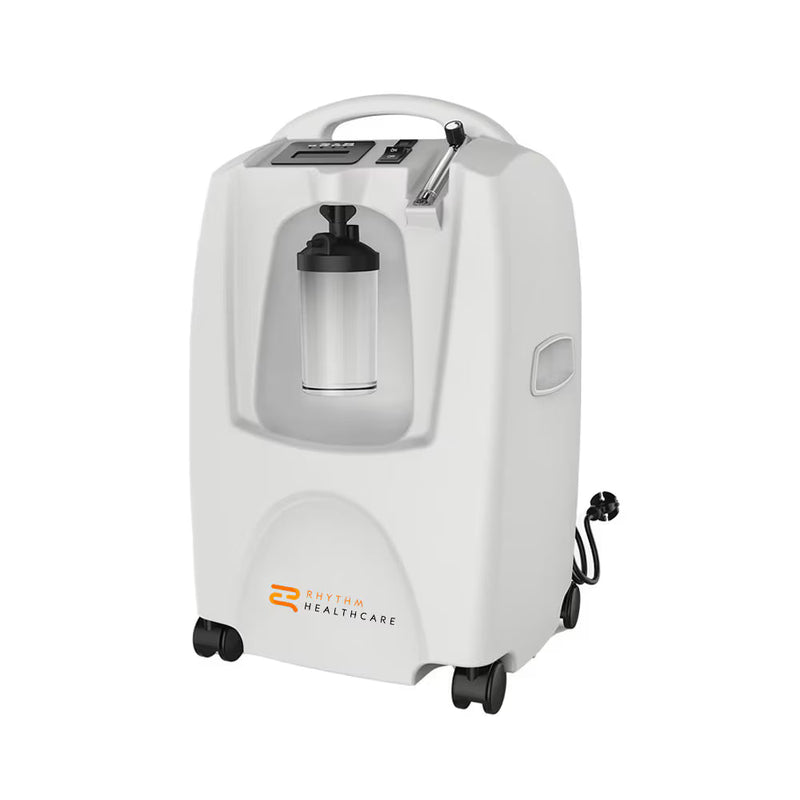

Rhythm Lm5Ba 5L Stationary Oxygen Concentrator
Rhythm Healthcare LM5BA 5-Liter Compact Stationary Oxygen Concentrator
Continuous Flow (0.5–5.0 LPM)
35.25 lbs (Compact Footprint)
Optional Transfill Rack (LM5BA9)
Executive Product Overview
The Rhythm Healthcare LM5BA is a quiet, durable 5-liter stationary oxygen concentrator engineered for continuous, long-term oxygen therapy across long-term care facilities, HME rental fleets, and home health environments. Utilizing pressure swing adsorption (PSA) technology paired with high-purity molecular sieve beds, the LM5BA delivers continuous medical-grade oxygen from 0.5 to 5.0 LPM at a stable 93% ± 3% concentration.
Weighing only 35.25 pounds, the LM5BA features an easy-to-read digital hour meter, top transport handle, and smooth-gliding casters for effortless room-to-room repositioning. Operating efficiently at under 365 Watts, the system includes an advanced alarm array with automated safety shutdown protocols, as well as compatibility with an optional cylinder transfill rack (LM5BA9) to recharge portable oxygen tanks on-site.
Key Performance & Operational Features
- 0.5 to 5.0 LPM Continuous Output: Precise flowmeter control delivers continuous medical-grade oxygen at 93% ± 3% purity.
- Low Power Draw (< 365W): Energy-efficient electrical profile reduces continuous operational utility costs.
- Lightweight Compact Chassis (35.25 lbs): Built-in top handle and heavy-duty rolling casters simplify room placement.
- Comprehensive Alarm Array & Auto-Shutdown: Active alerts for high/low pressure, low purity, line blockage, thermal overload, and power outages.
- Digital Hour Meter Display: Front-panel digital timer tracks cumulative operational hours for simplified maintenance logging.

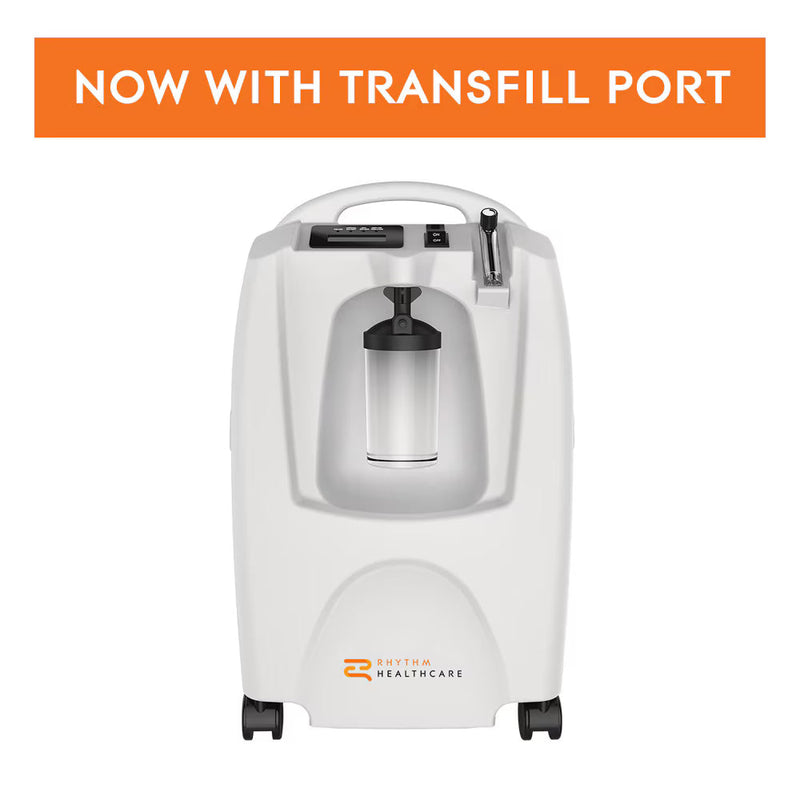

- Optional Transfill Integration: Compatible with the LM5BA9 transfill rack accessory for filling portable cylinders on-site.
- 5-Year Manufacturer Warranty: Standard 5-year coverage for units purchased on or after January 1, 2026.
Complete Technical Specifications
| Brand / Manufacturer | Rhythm Healthcare |
|---|---|
| Model Designation | LM5BA |
| Product Classification | Compact Stationary Home Oxygen Concentrator |
| FDA Regulatory Status | Class II Medical Device | Prescription (Rx) Required |
| HCPCS Billing Code | E1390 |
| Flow Range & Pressure | 0.5 to 5.0 LPM Continuous Flow | 40–60 kPa Outlet Pressure |
| Oxygen Concentration | 93% (± 3%) across all flow settings |
| Power Requirements & Draw | AC 115V/60Hz; AC 230V/50Hz (< 365 Watts Draw) |
| Dimensions & Weight | Net Weight: 35.25 lbs (16.0 kg) | Integrated Casters & Top Handle |
| Optional Accessories | Transfill Rack Adapter (SKU: LM5BA9) |
| Warranty Coverage | 5-Year Manufacturer Warranty (Units purchased on/after Jan 1, 2026) |
Facility Procurement & Risk Mitigation Insight
Standardizing standard-acuity bed spaces on the Rhythm Healthcare LM5BA lowers fleet turnover through its 35.25 lb compact cabinet design and comprehensive 5-year manufacturer warranty (for units purchased on or after Jan 1, 2026). The automated safety shutdown system mitigates risks associated with pressure faults or purity drops, ensuring strict compliance logging for facility quality assurance.
Product & Compliance FAQs
Q: What safety systems are built into the Rhythm Healthcare LM5BA?
A: The LM5BA features a comprehensive alarm suite that monitors operating temperature, oxygen purity, high/low line pressure, power loss, and tubing blockages, automatically shutting down the system during severe fault conditions to protect internal components.
Q: Can the LM5BA be used to fill portable oxygen tanks on-site?
A: Yes. By attaching the optional Rhythm LM5BA9 transfill rack accessory, facilities can connect compatible transfill compression units to recharge portable cylinders directly from the concentrator.
Q: What prescription documentation is required prior to order dispatch?
A: Per FDA Class II medical device regulations, orders for the Rhythm Healthcare LM5BA require a valid prescription or medical license specifying continuous-flow oxygen settings prior to compliance verification and shipment release.
B2B Procurement Disclaimer: Technical specifications, flow ratings, and regulatory billing descriptors (HCPCS E1390) are compiled from Rhythm Healthcare manufacturer standards. Facilities are responsible for verifying valid prescription documentation prior to patient deployment.
