Drive Devilbiss Beagle Pediatric Compressor Nebulizer With Carrying Bag
Drive DeVilbiss Beagle Pediatric Compressor Nebulizer System
Max ā„ 30 PSIG (10ā14 PSIG Operating)
0.5 to 5.0 Microns (Deep Lung Deposition)
5.0 to 8.0 LPM Operating Flow Rate
Executive Product Overview
The Drive DeVilbiss Beagle Pediatric Compressor Nebulizer System is a medical-grade aerosol delivery system engineered to promote clinical treatment compliance in pediatric patients. Designed in the form of a friendly beagle pup, this therapeutic compressor alleviates anxiety during administration of liquid bronchodilators and anti-inflammatory medications in home care, outpatient clinic, and pediatric ward environments.
Driven by a heavy-duty piston pump compressor capable of delivering maximum pressures exceeding 30 PSIG, the Beagle produces an operating flow rate of 5.0 to 8.0 LPM. The system aerosolizes liquid medications into fine respirable particles ranging from 0.5 to 5.0 microns, ensuring optimal deposition into the lower bronchial tree. Built with rubber isolation feet for sound dampening, an integrated tail cup-docking slot for spill-free medication pouring, and a matching zippered canvas "Doghouse" carry bag, the Beagle system combines clinical performance with child-friendly ergonomics.
Package Configuration Portfolio
Select your kit configuration based on patient treatment duration and facility stocking requirements:
| Configuration Option | MPN / SKU | UPC / Barcode | Package Contents & Clinical Application |
|---|---|---|---|

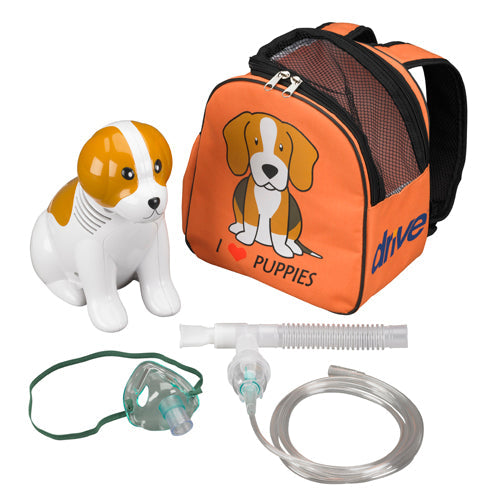

| Reusable Pediatric Mask Kit | 18090-BE | 822383504667 | Includes Beagle compressor, Doghouse carry bag, (1) 6-month reusable Neb cup, child mask, 7ft tubing, and (5) air filters. Best for long-term daily home therapy. |
| Standard Disposable Kit | 18091-BE | 822383504674 | Includes Beagle compressor, Doghouse carry bag, (1) disposable Neb cup, child mask, pediatric mouthpiece, 7ft tubing, and (5) air filters. Best for short-term recovery or travel. |
Key Performance & Operational Features
- Anxiety-Reducing Pediatric Housing: Friendly animal design engages pediatric patients to encourage normal breathing patterns, optimizing medication deposition.
- Heavy-Duty Piston Pump Engine: Delivers continuous operating pressures of 10 to 14 PSIG (ā„ 30 PSIG max) for rapid, consistent aerosol treatments.
- Targeted Respiration Particle Size (0.5ā5.0 Āµm): Atomizes liquid bronchodilators into fine mist for maximum lower airway penetration.
- Hands-Free Tail Docking Slot: Molded tail slot securely holds the nebulizer cup upright to prevent accidental medication spills during prep.
- Quiet Sound-Dampening Isolation: Internal motor insulation and rubber isolation feet reduce acoustic noise and vibration.

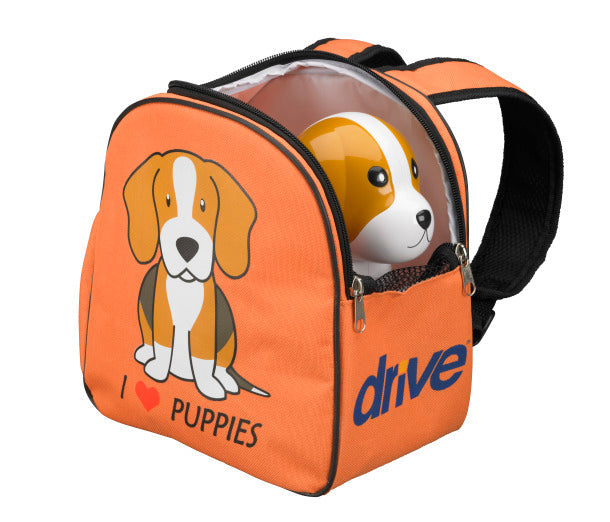

- Custom "Doghouse" Canvas Travel Bag: Sturdy zippered storage tote keeps compressor, tubing, masks, and medication vials organized.
Complete Technical Specifications
| Brand / Master Vendor | Drive DeVilbiss Healthcare |
|---|---|
| Model Designation | Beagle Pediatric Compressor Nebulizer System |
| Product Classification | Pediatric Piston-Pump Compressor Nebulizer |
| FDA Regulatory Status | Class II Medical Device | Prescription (Rx) Required |
| HCPCS Billing Code | E0570 |
| Pressure & Flow Output | Max Pressure: ā„ 30 PSIG | Operating Pressure: 10ā14 PSIG | Flow: 5.0ā8.0 LPM |
| Particle Size Range | 0.5 to 5.0 Microns (MMAD) |
| Power Requirements | 115V AC / 60 Hz (Standard 2-Prong Polarized Plug) |
| Dimensions & Weight | 8.8ā³ L x 5.4ā³ W x 7.6ā³ H | Net Hardware Weight: 3.5 lbs (1.6 kg) |
| Filter Maintenance | Check monthly; replace round white intake filter cap when gray (do not wash) |
| Warranty Coverage | 5-Year Limited Compressor Warranty |
Facility Procurement & Risk Mitigation Insight
Standardizing pediatric aerosol therapy on the Drive DeVilbiss Beagle system improves clinical outcomes by reducing treatment refusal and crying spells, which otherwise lead to shallow oral breathing and throat deposition. The robust ā„30 PSIG piston compressor guarantees rapid medication nebulization, while the included Doghouse carry bag simplifies asset tracking and transport for pediatric discharge programs.
Product & Compliance FAQs
Q: What is the primary difference between the 18090-BE and 18091-BE packages?
A: The Beagle compressor unit itself is identical in both listings. Model 18090-BE includes a dishwasher-safe reusable medication cup calibrated for up to 6 months of daily use. Model 18091-BE includes a disposable medication cup intended for up to 2 weeks of short-term treatment.
Q: How should the nebulizer cup and mask accessories be cleaned between treatments?
A: After each treatment, disconnect the plastic medication cup, mask, and mouthpiece from the supply tubing and wash them thoroughly in warm, soapy water, allowing them to air dry. Never submerge or wash the 7-foot oxygen supply tubing line.
Q: What prescription documentation is required prior to order dispatch?
A: Per FDA Class II medical device regulations, orders for the Drive DeVilbiss Beagle Nebulizer require a valid prescription or medical license specifying aerosol compressor therapy prior to compliance verification and shipment release.
B2B Procurement Disclaimer: Technical specifications, pressure ratings, and regulatory billing descriptors (HCPCS E0570) are compiled from Drive DeVilbiss Healthcare standards. Facilities are responsible for verifying valid prescription documentation prior to patient deployment.
ā WARNING: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
