Nidek Nuvo Lite Mark 5 Oxygen Concentrator (5L)
Nidek Nuvo Lite Mark 5 Compact Oxygen Concentrator (Model 525)
Continuous Flow (0.125ā5.0 LPM)
~40 dBA (Ultra-Quiet Sleeping Tier)
~32.0 lbs (Ultra-Compact Cabinet)
Executive Product Overview

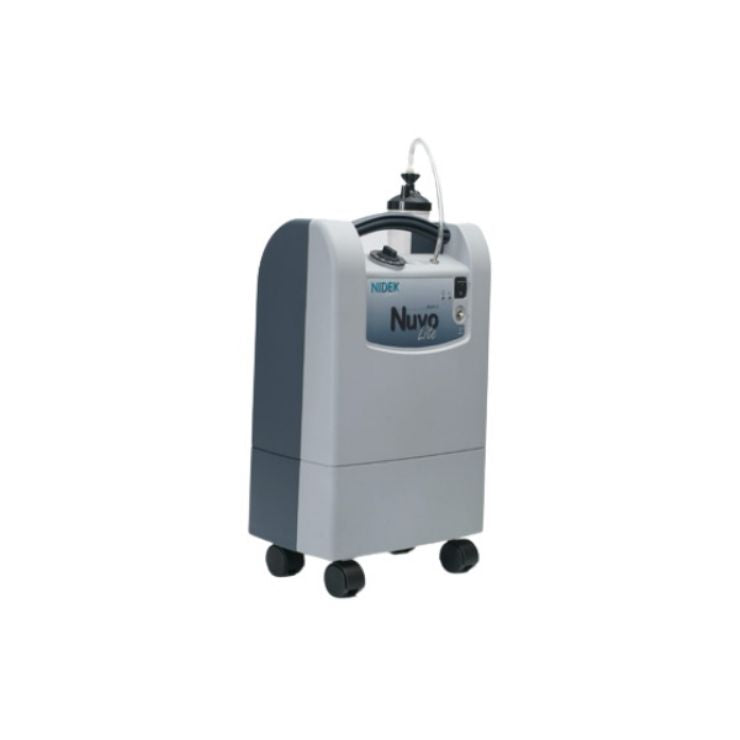

The Nidek Nuvo Lite Mark 5 (Model 525) is an ultra-compact, highly energy-efficient stationary oxygen concentrator engineered for continuous, long-term oxygen therapy across long-term care facilities, home health deployments, and institutional care beds. Weighing just 32 pounds, the Nuvo Lite delivers continuous-flow medical oxygen across 12 flow settings from 0.125 to 5.0 LPM with an average purity output of 90% (+6.5% / -3.0%).

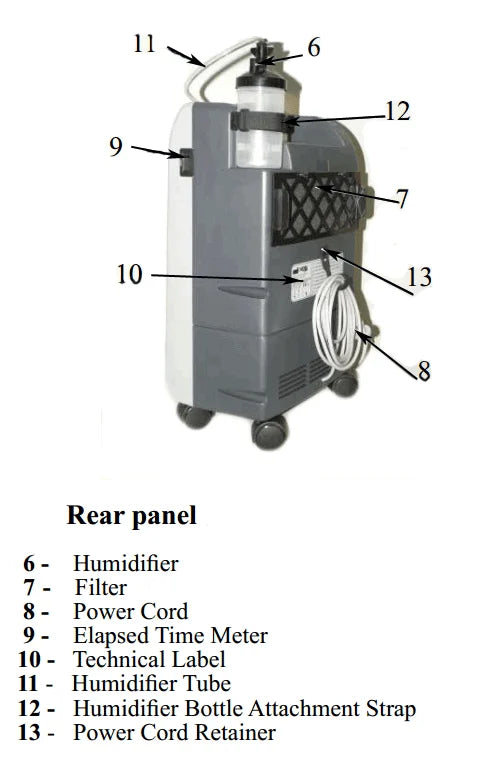

Utilizing Nidek's proprietary Rapid Pressure Swing Absorption (RPSA) technology, the Nuvo Lite reaches full therapeutic oxygen purity in under 3 minutes from a cold start. Operating at an ultra-quiet ~40 dBA with a low power draw (~330W), this Model 525 configuration features an integrated Oxygen Concentration Status Indicator (OCSI), a single-knob lockable flowmeter, a durable metal outlet nozzle, and accessible rear-panel filter maintenance.
Key Performance & Operational Features
- 0.125 to 5.0 LPM Continuous Output (12 Settings): Low-flow capability accommodates pediatric and adult continuous oxygen protocols.
- Rapid RPSA Startup (< 3 Minutes): Rapid Pressure Swing Absorption system generates therapeutic 90% purity in under 3 minutes.
- Ultra-Quiet Operation (~40 dBA): Exceptionally low acoustic signature supports undisturbed patient rest and overnight care.
- Low Power Draw (~330W Average): Energy-efficient design reduces continuous operational power consumption for facilities.
- Integrated OCSI Oxygen Monitor: Standard on Model 525 to continuously verify output concentration and trigger low-purity alerts.

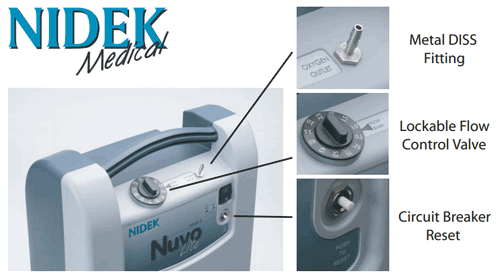

- Lockable Flowmeter Dial: Single-knob flow setting control can be locked to prevent unauthorized patient tampering.
- Reinforced Metal Outlet Port: High-durability metal nozzle barb prevents connector snaps and hose port shear damage.
- Made in the USA: Manufactured in the United States backed by a 3-year limited warranty.
Complete Technical Specifications
| Brand / Manufacturer | Nidek Medical Products, Inc. |
|---|---|
| Model Designation | Nuvo Lite Mark 5 (Model 525 with OCSI) |
| Product Classification | Ultra-Compact Stationary Oxygen Concentrator |
| FDA Regulatory Status | Class II Medical Device | Prescription (Rx) Required |
| HCPCS Billing Code | E1390 |
| Flow Range & Pressure | 0.125 to 5.0 LPM Continuous Flow (12 Steps) | 7 PSIG Outlet Pressure |
| Oxygen Concentration | 90% (+6.5% / -3.0%) across all flow settings |
| Purity Monitor (OCSI) | Included Standard ā Solid-state oxygen purity monitoring |
| Power Requirements & Draw | 115 VAC / 60 Hz (~330 Watts Average Draw) |
| Sound Output Level | ~40 dBA Average Output |
| Dimensions & Weight | 23.0ā³ H x 14.0ā³ W x 9.0ā³ D | Net Weight: ~32.0 lbs (14.5 kg) |
| Country of Origin & Warranty | Made in USA | 3-Year Limited Manufacturer Warranty |
Facility Procurement & Risk Mitigation Insight
Standardizing 5 LPM patient beds on the Nidek Nuvo Lite Mark 5 lowers ongoing facility utility overhead via its low 330W power draw while maintaining ultra-quiet (~40 dBA) room acoustics. The reinforced metal oxygen outlet port eliminates frequent plastic barb shearing, reducing fleet repair turnover and depot downtime.
Product & Compliance FAQs
Q: What is the primary difference between Nidek Nuvo Lite Model 525 and Model 520?
A: Model 525 includes the integrated Oxygen Concentration Status Indicator (OCSI), which continuously monitors gas purity and triggers alerts if oxygen levels drop below threshold. Model 520 does not include this monitor. This listing is for Model 525.
Q: How quickly does RPSA technology reach therapeutic oxygen concentration upon startup?
A: Thanks to Rapid Pressure Swing Absorption (RPSA) technology, the Nuvo Lite reaches its full therapeutic oxygen concentration level of 90% in under 3 minutes from initial power-on.
Q: What prescription documentation is required prior to order dispatch?
A: Per FDA Class II medical device regulations, orders for the Nidek Nuvo Lite Mark 5 require a valid prescription or medical license specifying continuous-flow oxygen settings prior to compliance verification and shipment release.
B2B Procurement Disclaimer: Technical specifications, flow ratings, and regulatory billing descriptors (HCPCS E1390) are compiled from Nidek Medical manufacturer standards. Facilities are responsible for verifying valid prescription documentation prior to patient deployment.
