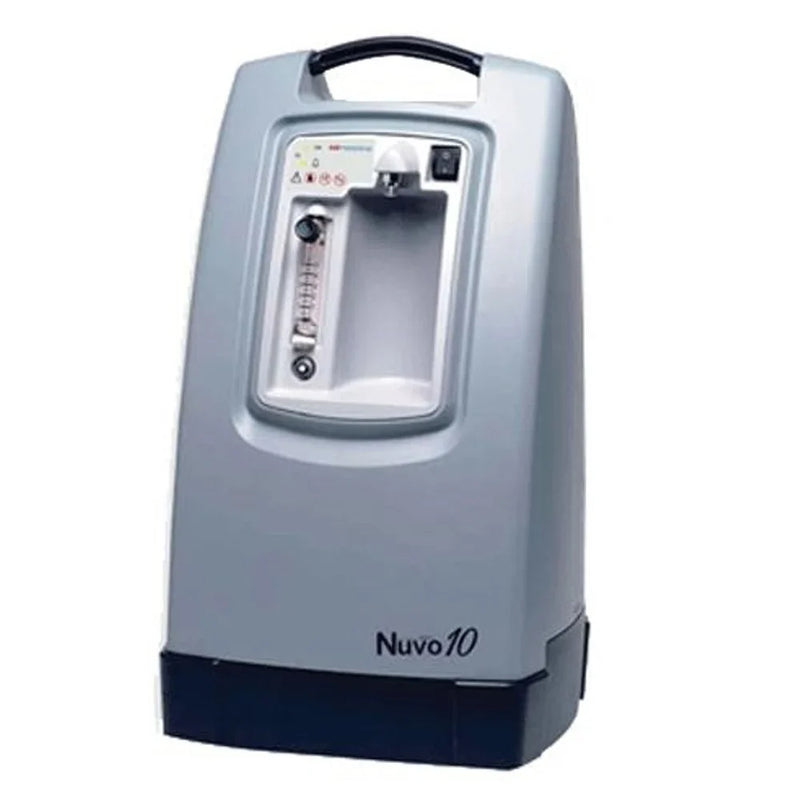

Nidek Nuvo 10 High-Flow Stationary Oxygen Concentrator (Model 595)
High-Flow & High-Pressure Oxygen System | Continuous Flow 2.0ā10.0 LPM | 20 PSIG Output Pressure
Executive Product Overview
The Nidek Nuvo 10 (Model 595) is a heavy-duty, high-flow stationary oxygen concentrator engineered for high-acuity respiratory care, long-term care facilities, and home health networks. Delivering continuous-flow oxygen from 2.0 to 10.0 LPM at 90% purity, the Nuvo 10 operates at an elevated outlet pressure of 20 PSIG ā approximately three times the pneumatic pressure of standard 5-liter home concentrators.
Assembled in the United States, the Nuvo 10 features a dual-outlet manifold configuration that enables split-flow delivery to two beds concurrently. The 20 PSIG pneumatic drive directly powers clinical accessories including large-volume jet nebulizers, venti-masks, and long tubing runs up to 200 feet. Outfitted with an integrated Oxygen Concentration Status Indicator (OCSI) with a flow-blockage alarm, lockable flow control dial, and heavy-duty smooth-rolling casters, the Nuvo 10 provides long-term operational reliability for high-volume oxygen setups.
Key Technical & Operational Features
- 2.0 to 10.0 LPM Continuous Flow: High-volume output supports severe COPD, tracheostomy protocols, and high-flow oxygen delivery.
- 20 PSIG High Outlet Pressure: Pneumatic force drives jet nebulizers, medication nebulizers, and venti-masks directly without secondary air compressors.
- Dual Outlet Split-Flow Capability: Double outlet port allows one machine to serve two patient care stations concurrently.
- Integrated OCSI Oxygen Monitor: Solid-state sensor continuously verifies purity and triggers visual and audible alerts if oxygen levels drop.
- Extended Tubing Run Support: High outlet pressure pushes medical-grade oxygen through long tubing runs without flow velocity drops.
- Lockable Flowmeter Control: Front-mounted flow control dial can be locked to prevent unmonitored setting adjustments.
- Low Maintenance Filter Design: Accessible rear cabinet pre-filter removes easily for warm water cleaning.
- Made in the USA: Manufactured in the United States backed by a 3-year limited warranty.
Standardizing high-acuity patient rooms on the Nidek Nuvo 10 mitigates clinical risk through its 20 PSIG output, which drives accessory-driven aerosol therapies without auxiliary air pumps. The dual-outlet feature allows shared-room deployments, optimizing equipment utilization while reducing power outlet demand in semi-private care rooms.
Complete Technical Specifications
| Brand / Manufacturer | Nidek Medical Products, Inc. |
| Model / MPN | Nuvo 10 (Model 595) |
| Product Classification | High-Flow / High-Pressure Stationary Oxygen Concentrator |
| Material Composition | Not provided ā verify with manufacturer |
| Thickness | Not provided ā verify with manufacturer |
| Length | Not provided ā verify with manufacturer |
| Color | Not provided ā verify with manufacturer |
| Sterility / Protection Level | Not applicable ā non-sterile durable medical equipment |
| Packaging Yield | N/A ā single-unit capital equipment |
| FDA Regulatory Status | Class II Medical Device | Prescription (Rx) Required |
| Industry Codes (HCPCS) | E1390 (Single Port) / E1391 (Dual Delivery Port) |
| Industry Codes (UNSPSC) | Not provided ā verify with manufacturer |
| Flow Range & Pressure | 2.0 to 10.0 LPM Continuous Flow | 20 PSIG (138 kPa) Pressure |
| Oxygen Concentration | 90% (+5.0% / ā3.0%) at all flow rates |
| Purity Monitor (OCSI) | Included ā continuous monitoring with flow-blockage alarm |
| Power Requirements & Draw | 115 VAC / 60 Hz (~700 Watts Average Draw) |
| Sound Output Level | < 58 dBA Average Output |
| Dimensions & Weight | 28.0ā³ H x 16.0ā³ W x 16.0ā³ D | Net Weight: ~54.0 lbs (24.5 kg) |
| Country of Origin & Warranty | Made in USA | 3-Year Limited Manufacturer Warranty |
Procurement & Compliance FAQs
Q: What clinical advantages does the 20 PSIG high outlet pressure provide?
A: Unlike standard 5-liter concentrators (which operate at ~5ā7 PSIG), the 20 PSIG output provides sufficient pneumatic pressure to drive large-volume jet nebulizers, venti-masks, and tracheostomy setups directly, while pushing oxygen through extended tubing runs up to 200 feet.
Q: Can the Nidek Nuvo 10 deliver oxygen to two patients simultaneously?
A: Yes. The Nuvo 10 includes a double outlet manifold configuration that allows flow to be split between two delivery ports, serving two patient beds concurrently up to a combined maximum of 10 LPM.
Q: What prescription verification is required prior to order fulfillment?
A: Per FDA Class II medical device regulations, orders for the Nidek Nuvo 10 require a valid prescription or medical license specifying continuous-flow high-volume oxygen settings prior to compliance verification and order release.
B2B Procurement Disclaimer: Technical specifications, flow ratings, and regulatory billing descriptors (HCPCS E1390/E1391) are compiled from Nidek Medical manufacturer standards. Facilities are responsible for verifying valid prescription documentation prior to patient deployment.
