Mckesson 5 Liter Compact Oxygen Concentrator With Osd

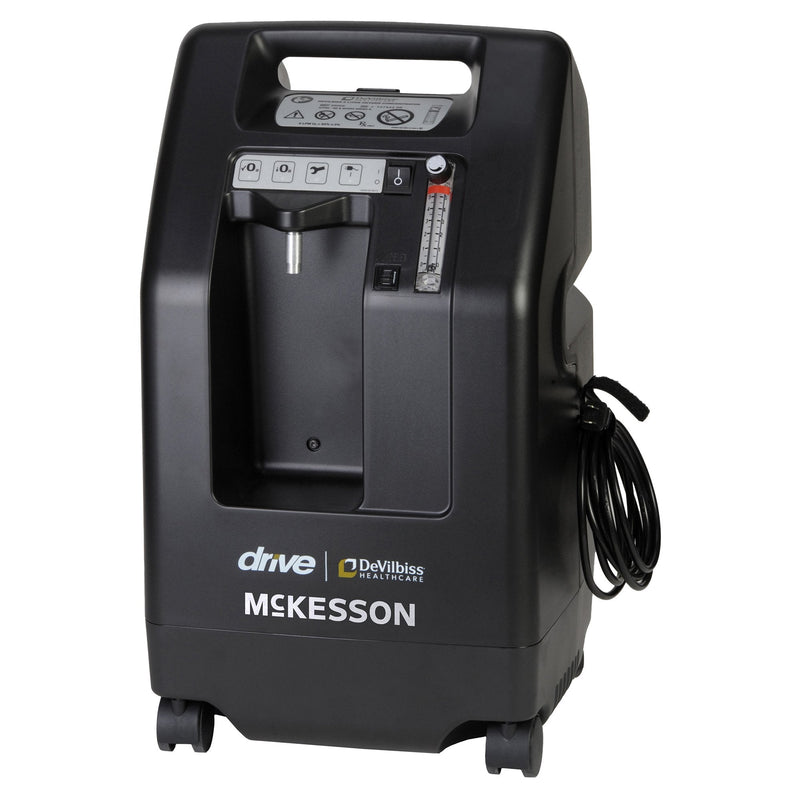

McKesson 5 Liter Compact Oxygen Concentrator with OSD
Continuous Flow (0.5–5.0 LPM)
Integrated OSD® (Oxygen Sensing Device)
146-525DS (Compact Series)
Executive Product Overview
The McKesson 5-Liter Compact Oxygen Concentrator with OSD (Oxygen Sensing Device) is a stationary medical oxygen system engineered for continuous, long-term oxygen therapy across institutional care settings, long-term care facilities, and home health fleets. Designed for space-efficient bed placement, it delivers continuous-flow medical oxygen from 0.5 to 5.0 LPM at an average concentration of 93% ± 3%.
Built with an integrated solid-state Oxygen Sensing Device (OSD®), the unit continuously verifies oxygen concentration output in real time to uphold clinical standards. The system features an intuitive control panel, built-in diagnostic alarms for system monitoring, protected component housings, and a quiet compressor configuration that minimizes operational sound levels in resident care spaces.
Key Performance & Operational Features
- 0.5 to 5.0 LPM Continuous Flow: Adjustable flowmeter controls support standardized respiratory protocols and precise oxygen administration.
- Integrated OSD® Oxygen Sensor: Continuous monitoring system tracks oxygen purity output and alerts care staff to any sub-therapeutic drop.
- Space-Saving Compact Footprint: Low-profile cabinet design allows easy positioning adjacent to care beds or within equipment depots.
- Comprehensive Alarm System: Equipped with audible and visual diagnostic indicators for pressure faults, low purity, power outages, and system errors.
- Low-Noise Pneumatic System: Engineered to minimize acoustic disruption during continuous overnight patient therapy.
- Standard AC Outlet Power: Plugs directly into standard 115V AC institutional electrical outlets for reliable 24/7 power.
Complete Technical Specifications
| Brand / Distributor | McKesson Brand |
|---|---|
| Model / SKU Designation | 146-525DS |
| Product Classification | Compact Stationary Oxygen Concentrator |
| FDA Regulatory Status | Class II Medical Device | Prescription (Rx) Required |
| HCPCS Billing Code | E1390 |
| Flow Range & Delivery | 0.5 to 5.0 LPM Continuous Flow |
| Oxygen Purity Concentration | 93% (± 3%) across all output settings |
| Purity Monitor (OSD) | Included — Continuous solid-state oxygen sensing |
| Power Requirements | 115 VAC / 60 Hz Standard Electrical Outlet |
| Cabinet Design | Compact stationary housing with integrated handles |
| Warranty Coverage | Standard Manufacturer Limited Warranty |
Facility Procurement & Risk Mitigation Insight
Standardizing long-term care bed spaces on the McKesson 5-Liter Compact Oxygen Concentrator equips clinical facilities with dependable assets engineered to streamline care workflows, lower fleet maintenance overhead via durable cabinet construction, and maintain strict oxygen purity compliance through automated OSD® monitoring.
Product & Compliance FAQs
Q: How does the built-in OSD (Oxygen Sensing Device) support clinical compliance?
A: The OSD continuously monitors the output purity of generated oxygen in real time. If purity falls below clinical effectiveness standards, the device immediately triggers visual and audible system alarms to alert staff.
Q: What is the primary HCPCS billing code for the McKesson 146-525DS concentrator?
A: The standard HCPCS billing descriptor for this 5-liter stationary continuous-flow oxygen concentrator is E1390.
Q: What prescription documentation is required prior to shipping release?
A: Per FDA Class II medical device regulations, orders for the McKesson 5L Oxygen Concentrator require a valid prescription or medical license specifying continuous-flow oxygen settings prior to compliance verification and order dispatch.
B2B Procurement Disclaimer: Technical specifications, flow ratings, and regulatory billing guidelines (HCPCS E1390) are compiled from manufacturer standards. Facilities are responsible for verifying valid prescription documentation prior to patient deployment.
