Drive Devilbiss 10L Oxygen Concentrator (1025Ds)
Drive DeVilbiss 10 Liter High-Flow Oxygen Concentrator (1025DS)
Continuous Flow (2.0–10.0 LPM)
DeVilbiss OSD® (Oxygen Sensing Device)
Rear Auxiliary Oxygen Port Included
Executive Product Overview

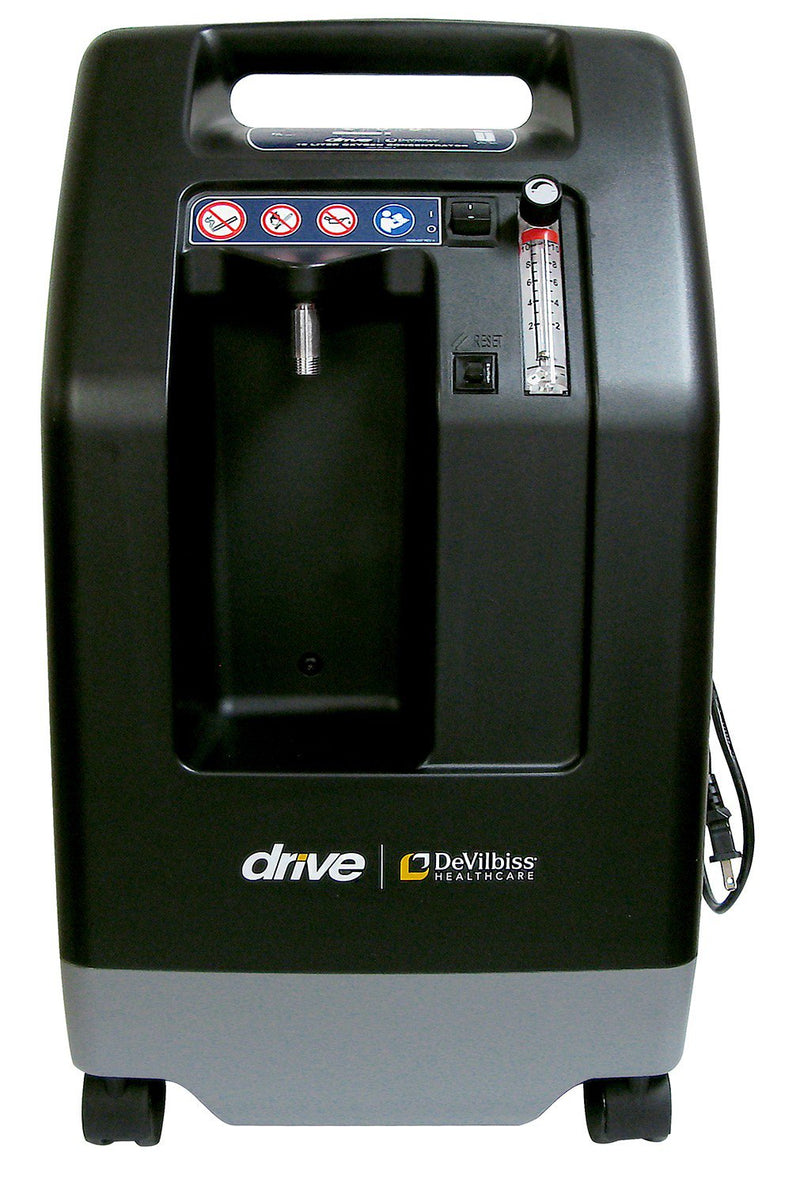

The Drive DeVilbiss 1025DS is a commercial-grade, high-flow stationary oxygen concentrator engineered to deliver continuous-flow medical oxygen from 2.0 to 10.0 LPM at 87% to 96% purity. Uniquely housed in the same compact cabinet footprint as standard 5-liter units and weighing just 42 pounds, the 1025DS provides high-volume oxygen delivery without the physical bulk traditional 10-liter units require.
Built with DeVilbiss’s patented Oxygen Sensing Device (OSD®), the 1025DS continuously monitors output concentration to ensure unwavering clinical purity. It features a lockable pressure-compensated flowmeter to prevent unintended flow setting changes, a dedicated rear auxiliary port for connecting cylinder transfill systems, and a high-pneumatic output capable of driving large-volume jet nebulizers and high-pressure masks.
Key Performance & Operational Features
- 2.0 to 10.0 LPM High Continuous Flow: High-volume output supports severe respiratory conditions, tracheostomy protocols, and high-flow delivery.
- Compact 5L Form Factor (~42 lbs): Fits 10-liter performance into a 5-liter cabinet shell, drastically reducing floor space and transport effort.
- DeVilbiss OSD® Purity Monitor: Integrated solid-state sensor tracks concentration in real time and triggers alerts if purity falls below threshold.
- Lockable Flowmeter Control: Pressure-compensated flowmeter can be locked to prevent unauthorized or accidental flow setting adjustments.

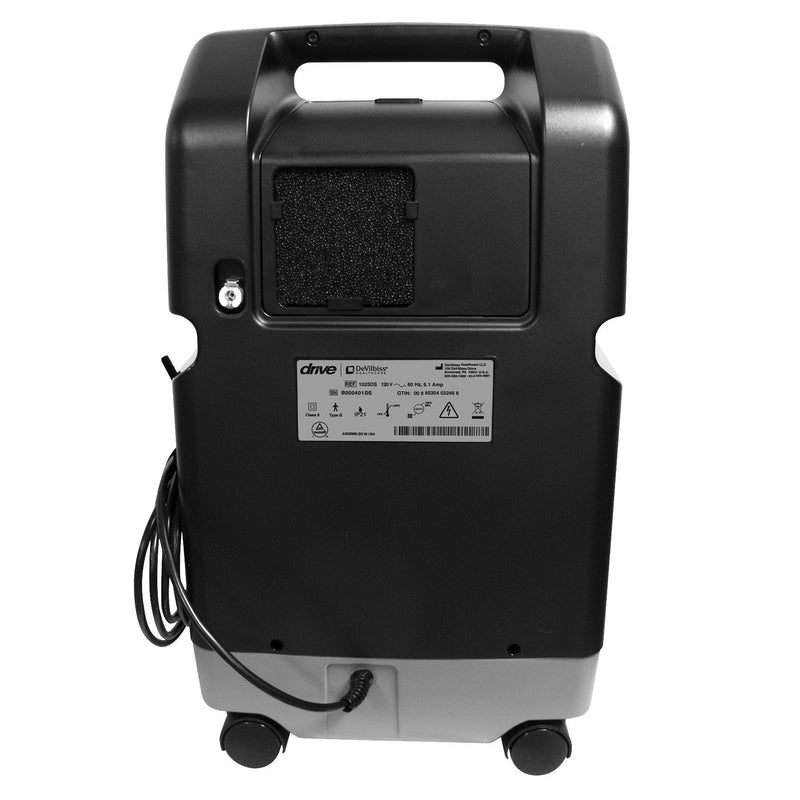

- Rear Auxiliary Transfill Port: Dedicated port enables direct hookup to cylinder transfill compression units and conservers.
- Extended Tubing Run (Up to 50 ft): Robust internal pneumatic force maintains flow through 50 feet of oxygen tubing plus a 7-foot cannula.
- Comprehensive Alarm System: Protects operations with alerts for high/low pressure, low flow, low purity, high temperature, and power outage.
- Made in the USA: Assembled in the United States backed by a 3-year manufacturer warranty.
Complete Technical Specifications
| Brand / Manufacturer | Drive DeVilbiss Healthcare |
|---|---|
| Model Designation | 1025DS Series (10-Liter Concentrator) |
| Product Classification | High-Flow Compact Stationary Oxygen Concentrator |
| FDA Regulatory Status | Class II Medical Device | Prescription (Rx) Required |
| HCPCS Billing Code | E1390 |
| Flow Range & Delivery | 2.0 to 10.0 LPM Continuous Flow (0.5 Increments) |
| Oxygen Concentration | 87.0% to 96.0% across all flow settings |
| Purity Monitor (OSD®) | Included — Continuous solid-state oxygen sensing |
| Power Requirements | 120 VAC / 60 Hz (~639 Watts Average) |
| Sound Level | ~41 dBA Average Output |
| Dimensions & Weight | 24.5″ H x 13.5″ W x 12.0″ D | Net Weight: ~42.0 lbs (19.0 kg) |
| Country of Origin & Warranty | Made in USA | 3-Year Limited Manufacturer Warranty |
Facility Procurement & Risk Mitigation Insight
Standardizing high-acuity bed spaces on the DeVilbiss 1025DS simplifies equipment management by offering 10 LPM performance in a standard 5L cabinet profile. The integrated transfill port allows facilities to recharge portable oxygen cylinders on-site, while the lockable flowmeter mitigates compliance risks associated with unmonitored patient setting adjustments.
Product & Compliance FAQs
Q: What makes the DeVilbiss 1025DS different from standard 10-liter concentrators?
A: The 1025DS delivers full 10 LPM continuous flow while utilizing the smaller 42-pound cabinet footprint of a standard 5-liter unit, making it significantly easier to store, maneuver, and deploy in tight patient care spaces.
Q: What is the purpose of the rear auxiliary port?
A: The auxiliary port allows direct connection to compatible oxygen cylinder transfill systems (such as DeVilbiss DeVOfill), allowing staff to fill portable oxygen tanks on-site using the concentrator's output.
Q: What electrical and prescription guidelines must be met prior to deployment?
A: Per FDA Class II medical device regulations, orders require a valid prescription or medical license specifying high-flow oxygen settings. Operationally, the 1025DS draws ~639W and must be plugged directly into a dedicated wall outlet without extension cords or power strips.
B2B Procurement Disclaimer: Technical specifications, flow ratings, and regulatory guidelines (HCPCS E1390) are compiled from Drive DeVilbiss manufacturer standards. Facilities are responsible for verifying valid prescription documentation prior to patient deployment.
