Devilbiss Oxygen 5L Concentrator
DeVilbiss 5 Liter Stationary Oxygen Concentrator
Continuous Flow (0.5–5.0 LPM)
Integrated OSD® (Oxygen Sensing Device)
~36.0 lbs (Compact Stationary)
Executive Product Overview

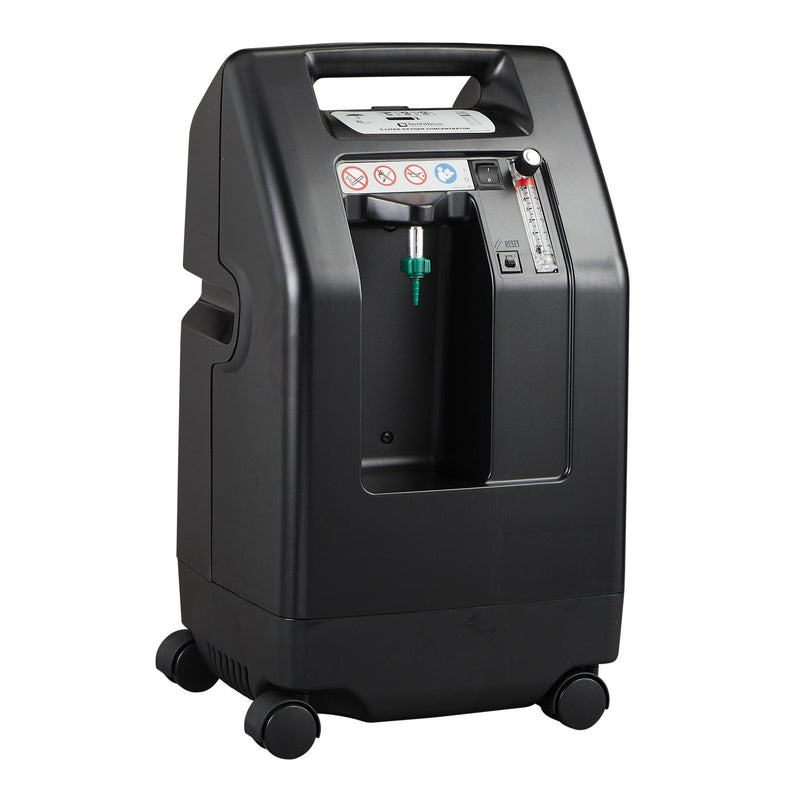

The DeVilbiss 5 Liter Stationary Oxygen Concentrator (525DS) is a high-reliability, clinical-grade medical oxygen system engineered for long-term care facilities, hospitals, and home health providers. Delivering continuous-flow oxygen from 0.5 to 5.0 LPM, this compact unit combines robust commercial internal componentry with low power draw, making it an industry-standard asset for continuous respiratory care fleets.
Equipped with DeVilbiss’s patented Oxygen Sensing Device (OSD®), the 525DS continuously monitors oxygen purity in real time to ensure uninterrupted clinical compliance. The unit features a protected recessed cannula fitting, an integrated humidifier bottle nook, visual and audible alarm systems, and smooth-rolling casters for effortless deployment across patient care rooms.
Key Performance & Operational Features
- 0.5 to 5.0 LPM Continuous Flow: Smooth lockable flowmeter control supports precise oxygen administration for variable clinical protocols.
- Patented DeVilbiss OSD® Monitor: Integrated solid-state sensor continuously verifies purity to guarantee patient safety and regulatory compliance.
- Recessed Cannula Outlet: Protected port placement minimizes accidental tubing detachment and barb breakage in high-traffic care spaces.
- Integrated Humidifier Nook: Dedicated recessed compartment securely holds standard bubble humidifier bottles to prevent spill damage.
- Comprehensive Alarm System: Audible and visual alerts for high/low pressure, low flow, low oxygen concentration, power failure, and thermal faults.
- Low Power Consumption & Heat Dissipation: Efficient internal pneumatic design reduces power costs and ambient heat generation in resident rooms.
- Auxiliary Port Output: Built-in port accepts transfill systems for filling portable oxygen cylinders on-site.
Complete Technical Specifications
| Brand / Manufacturer | Drive DeVilbiss Healthcare |
|---|---|
| Model Designation | 525DS Series (5-Liter Concentrator) |
| Product Classification | Compact Stationary Home Oxygen Concentrator |
| FDA Regulatory Status | Class II Medical Device | Prescription (Rx) Required |
| HCPCS Billing Code | E1390 |
| Flow Range & Delivery | 0.5 to 5.0 LPM Continuous Flow |
| Oxygen Concentration | 93% (± 3%) across all flow settings |
| Purity Monitor (OSD®) | Included — Continuous solid-state oxygen sensing |
| Power Requirements | 115 VAC / 60 Hz (~310 Watts Average) |
| Dimensions & Weight | 24.5″ H x 13.5″ W x 12.0″ D | Net Weight: ~36.0 lbs (16.3 kg) |
| Max Altitude & Tubing Run | Max Operating Altitude: 13,123 ft (4,000 m) | Max Tubing Run: 50 ft |
| Warranty Coverage | 3-Year Limited Manufacturer Warranty |
Facility Procurement & Risk Mitigation Insight
Standardizing long-term care bed spaces on the DeVilbiss 525DS reduces fleet service costs through its durable, low-maintenance cabinet design. The recessed cannula port prevents mechanical breakage, while the built-in OSD® sensor automates oxygen purity compliance tracking without requiring manual technician checks.
Product & Compliance FAQs
Q: How does the patented DeVilbiss OSD® system protect patient safety?
A: The Oxygen Sensing Device (OSD®) continuously measures oxygen purity output. If concentration levels drop below clinical efficacy standards, the OSD® triggers audible and visual alarms to immediately alert staff.
Q: Can the DeVilbiss 525DS be used to fill portable oxygen cylinders?
A: Yes. The 525DS includes an auxiliary transfill port that connects to compatible transfill compression systems, allowing facilities to fill portable cylinders directly from the stationary unit.
Q: What prescription verification is required prior to order fulfillment?
A: Per FDA Class II medical device regulations, orders for the DeVilbiss 5L Oxygen Concentrator require a valid prescription or medical license specifying continuous-flow oxygen settings prior to compliance release.
B2B Procurement Disclaimer: Technical specifications, flow ratings, and regulatory guidelines (HCPCS E1390) are compiled from Drive DeVilbiss manufacturer standards. Facilities are responsible for verifying valid prescription documentation prior to patient deployment.
