Sequal Eclipse 5 Concentrator – 2 Battery Package
CAIRE SeQual Eclipse 5 Portable Oxygen Concentrator — 2 Battery Package
Continuous (0.5–3.0 LPM) & Pulse (Settings 1–9)
2 Li-Ion Batteries + External Desktop Charger
autoSAT® & UltraSense® Breath Triggering
Executive Product Overview

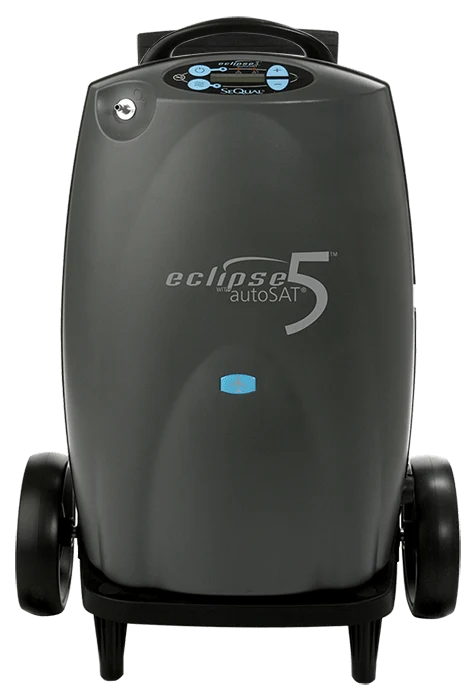

The CAIRE SeQual Eclipse 5 (Model 6900LN-SEQ Double Battery Package) is an industry-standard dual-mode transportable oxygen concentrator engineered to deliver continuous-flow medical oxygen up to 3.0 LPM and pulse-dose oxygen across settings 1 through 9 (up to a 192 mL bolus). Designed for 24/7/365 clinical reliance, this double-battery bundle includes a secondary power cartridge and an external desktop battery charger to eliminate power downtime during long-distance patient transport and travel.
Equipped with CAIRE's proprietary autoSAT® technology, the Eclipse 5 automatically adjusts internal compressor performance to maintain constant oxygen volume delivery even as patient respiratory rates fluctuate during physical exertion. Featuring UltraSense® technology for high-sensitivity breath detection, the unit operates on AC, 12V DC vehicle power (charging continuously at 2.0 LPM continuous or all pulse settings), and battery power. Fully FAA-approved for commercial air travel, it ships complete with a telescoping travel cart, accessory bag, and AC/DC adapters.
Combined Battery Duration Performance Portfolio
Operational runtime estimates utilizing both included power cartridges (hot-swapping secondary battery) across delivery modes:
| Operating Mode | Flow Setting / Level | Combined 2-Battery Runtime | Power & Operational Notes |
|---|---|---|---|
| Pulse Dose (Standard) | Setting 2.0 | Up to ~10.0 Hours | Includes external desktop charger for independent battery replenishment. |
| Pulse Dose (High) | Setting 6.0 / Setting 9.0 | Up to ~4.2 Hours (Set 6) / ~2.8 Hours (Set 9) | UltraSense® detects shallow inspiratory effort with adjustable rise times. |
| Continuous Flow (Low) | 1.0 LPM | Up to ~8.8 Hours | Compatible with PAP sleep circuits for nocturnal therapy transport. |
| Continuous Flow (High) | 2.0 LPM / 3.0 LPM | Up to ~4.0 Hours (2 LPM) / ~1.6 Hours (3 LPM) | Operates and recharges concurrently on DC vehicle power up to 2.0 LPM. |

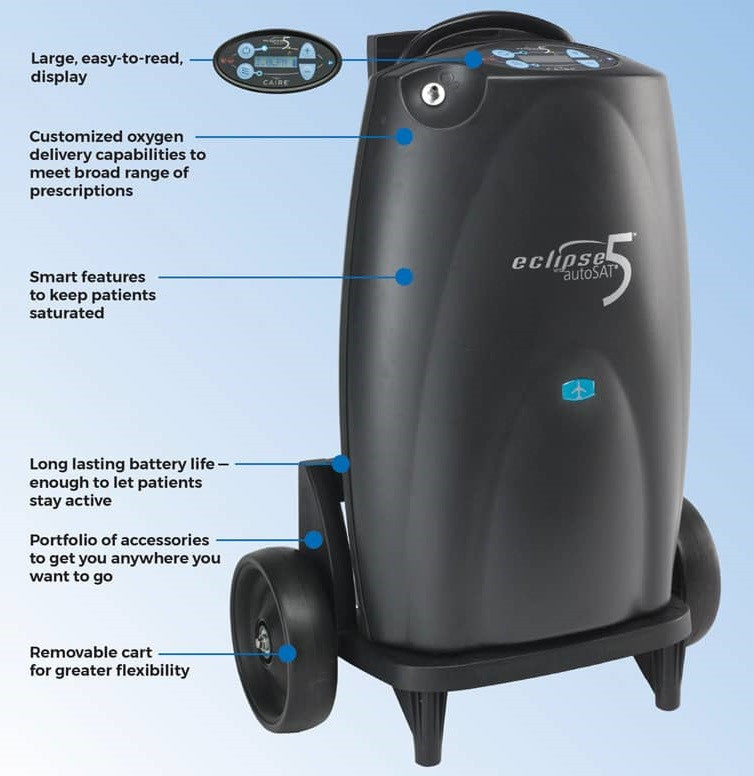

Key Performance & Operational Features
- Complete Travel & Extended Transport Package: Includes 2 rechargeable battery cartridges plus an external desktop charger to charge spare batteries independently.
- True Dual Delivery Capabilities: Continuous flow from 0.5 to 3.0 LPM (in 0.5 LPM increments) plus pulse dosing settings 1 to 9 (up to 192 mL bolus).
- Patented autoSAT® Technology: Servos output to match dynamic breathing rates, maintaining linear arterial oxygen saturation margins.
- UltraSense® Breath Triggering: High-sensitivity pressure sensor detects subtle inspiratory effort with fast valve response times.
- DC Vehicle Power Recharging: Full operational and battery charging capability when plugged into 12V DC vehicle sockets (at 2.0 LPM continuous and all pulse settings).
- FAA Commercial Aviation Approved: Conforms to Federal Aviation Administration guidelines for commercial aircraft deployment.
- Heavy-Duty Telescoping Cart: Includes an adjustable transport cart with oversized wheels for smooth navigation across uneven terrain.
Complete Technical Specifications
| Brand / Manufacturer | CAIRE® Inc. / Chart Industries |
|---|---|
| Model Designation | SeQual Eclipse 5 — 2 Battery Package (SKU: 6900LN-SEQ) |
| Product Classification | Dual-Mode Transportable Oxygen Concentrator |
| FDA Regulatory Status | Class II Medical Device | Prescription (Rx) Required |
| HCPCS Billing Code | E1390 (Concentrator) / E1392 (Portable Concentrator) |
| Delivery Output Scope | Continuous: 0.5–3.0 LPM | Pulse Dose: Settings 1.0–9.0 (Up to 192 mL) |
| Oxygen Purity & Sound | 90% (+5.5% / -3.0%) Purity | Sound Level: 40 dBA (Pulse 3) / 48 dBA (3 LPM Cont.) |
| Dimensions & Weight | 19.3″ H x 12.3″ W x 7.1″ D | Net Weight: 18.4 lbs (8.3 kg) with 1 battery installed |
| Power Capabilities | AC 100–240V (50/60Hz); DC 12V; Rechargeable Li-Ion (~2 to 5 hr recharge per battery) |

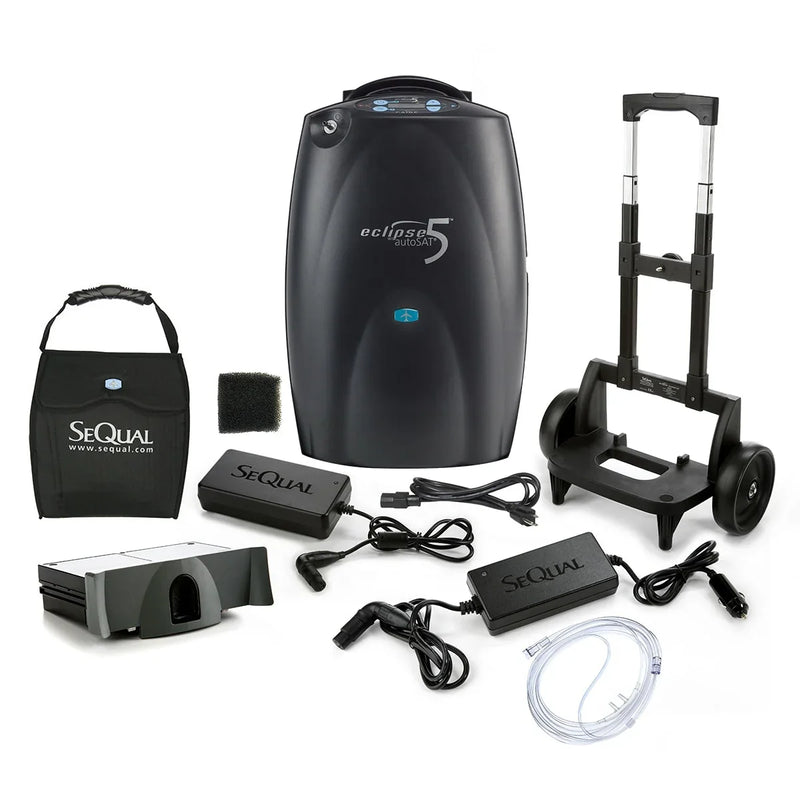

| Included Accessories | Concentrator, 2 batteries, external desktop charger, cart, accessory bag, AC/DC cords, cannula |
| Warranty Coverage | 3-Year Concentrator & Sieve Bed / 1-Year Battery & Charger Warranty |
Facility Procurement & Risk Mitigation Insight
Procuring the CAIRE SeQual Eclipse 5 Double Battery Package solves long-distance transport logistics for clinical facilities. Supplying continuous flow up to 3.0 LPM alongside pulse dosing up to setting 9, the included external desktop charger and secondary battery cartridge allow care personnel to maintain continuous power rotations without pulling concentrators out of active service for charging.
Product & Compliance FAQs
Q: What is the primary operational advantage of the external desktop battery charger included in this bundle?
A: The external desktop charger allows facility personnel to charge the secondary power cartridge independently at a wall outlet while the Eclipse 5 concentrator remains actively deployed with a patient on its primary battery or AC/DC power.
Q: How does CAIRE's autoSAT® technology support fluctuating patient respiratory rates?
A: autoSAT® functions as an automated throttle control. As a patient's breathing rate increases during activity or ambulation, autoSAT® automatically adjusts compressor cycle timing to ensure the full prescribed oxygen bolus is delivered without drop-offs.
Q: What prescription documentation is required prior to order dispatch?
A: Per FDA Class II medical device regulations, orders for the CAIRE SeQual Eclipse 5 require a valid prescription or medical license specifying continuous or pulse-dose oxygen settings prior to compliance verification and shipment release.
B2B Procurement Disclaimer: Technical specifications, flow ratings, and regulatory billing descriptors (HCPCS E1390/E1392) are compiled from CAIRE Inc. manufacturer standards. Facilities are responsible for verifying valid prescription documentation prior to patient deployment.
