Rhythm Complete Bundle — Oxygen & Aerosol Package
Rhythm Healthcare Complete Bundle — Oxygen & Aerosol Package
2 Stationary Units + 1 POC + 8 Aerosol Units
Continuous 1–10 LPM / Pulse Settings 1–5
Rhythm Resolve™ Direct Replacement Program
Executive Product Overview
The Rhythm Complete Bundle is a comprehensive, institutional-grade respiratory equipment package designed for long-term care facilities, HME provider fleets, and clinical logistics networks. Engineered to satisfy a full continuum of patient needs—from high-flow continuous delivery to lightweight ambulatory care and aerosolized medication therapy—this all-in-one bundle consolidates procurement onto a single manufacturer platform.
This package anchors high-acuity care with the LM10A 10-liter high-flow stationary concentrator (18–22 PSI output pressure), pairs it with the quiet LM5BA 5-liter stationary concentrator for standard residential therapy, includes the ultra-lightweight 4.37 lb P2 portable oxygen concentrator for mobile transport, and rounds out clinical fleet inventory with eight compact Aura-LT compressor nebulizer systems complete with disposable aerosol kits.

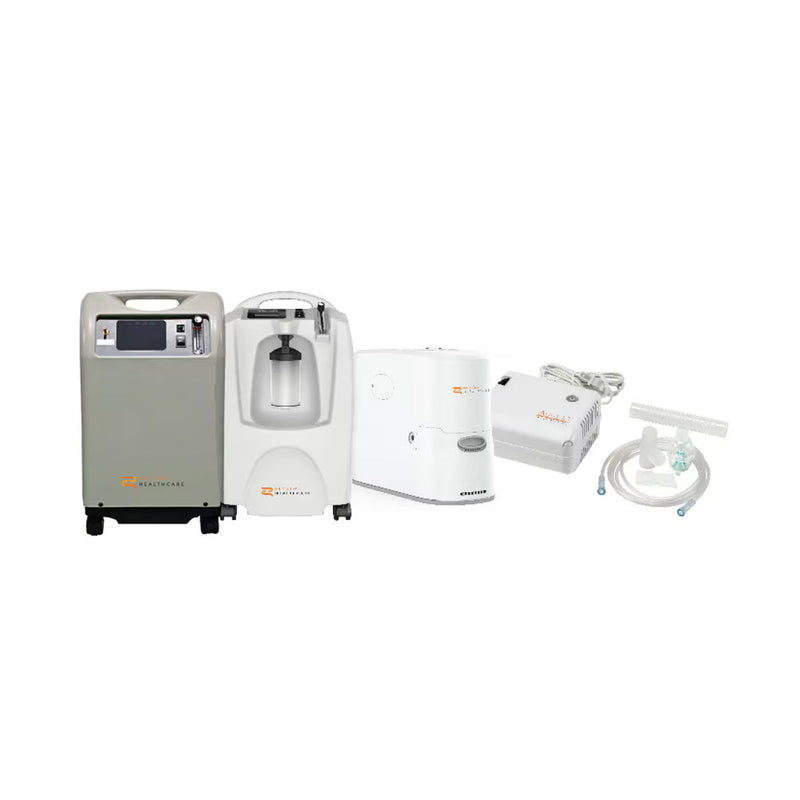

Bundle Component Breakdown
| Included Equipment | Model Designation | Quantity | Core Clinical Application |
|---|---|---|---|
| 10L High-Flow Concentrator | LM10A | 1 Unit | Continuous flow 1.0–10.0 LPM at 18–22 PSI for high-acuity care and long tubing runs. |
| 5L Stationary Concentrator | LM5BA | 1 Unit | Continuous flow up to 5.0 LPM at 93% ± 3% purity for standard room placement. |
| Portable Concentrator (POC) | P2 | 1 Unit | Ultra-lightweight (4.37 lbs) pulse-dose (Settings 1–5) FAA-approved mobile transport. |
| Compressor Nebulizers | Aura-LT | 8 Units | Compact (3.1 lbs) aerosolized medication delivery with disposable nebulizer kits. |
Key Performance & Operational Features
- Complete Clinical Continuum Coverage: Supports high-flow continuous care (10L), standard stationary therapy (5L), mobile ambulation (P2), and nebulized medication protocols (8x Aura-LT).
- High-Pressure 10L Engine (18–22 PSI): The LM10A supplies elevated pressure to drive high-flow accessories and maintain flow velocity through extended facility tubing.
- Standard Fire-Safety & O2 Purity Sensors: The LM10A includes an integrated fire-safety valve and solid-state oxygen purity monitoring as standard equipment.
- Low Power Draw 10L Pneumatics (~560W): The LM10A draws significantly less power than traditional 10L units (~700W), reducing facility energy costs.
- Ultra-Lightweight P2 Mobile Transport (4.37 lbs): FAA-approved POC delivers pulse settings 1–5 with a 2-minute warmup and up to 5 hours of battery runtime.
- Single Manufacturer & Resolved Warranty Platform: Backed by Rhythm Healthcare’s Resolve™ Warranty Replacement Program for simplified asset management and rapid exchanges.
Complete Component Specifications

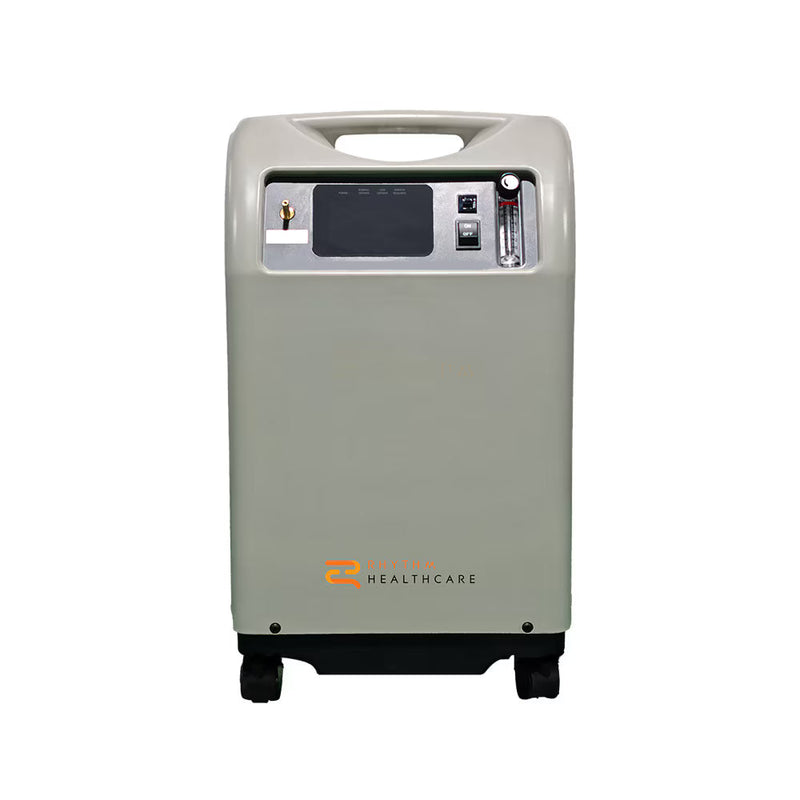

1. LM10A — 10-Liter High-Flow Stationary Concentrator
| Flow Range & Pressure | 1.0 to 10.0 LPM Continuous Flow | 18–22 PSI Outlet Pressure |
|---|---|
| Oxygen Concentration & Power | 87.0% to 96.0% | AC 115V/60Hz (~560 Watts Draw) |
| Safety & Purity Features | Integrated fire-safety thermal valve + OSD purity sensor included standard |
| Dimensions & Weight | 24.5″ H x 14.6″ W x 13.6″ D | Net Weight: 50.7 lbs (23.0 kg) |
| Warranty Coverage | 3-Year Device Warranty | 15,000-Hour Compressor Warranty (Rhythm Resolve™) |
2. LM5BA — 5-Liter Compact Stationary Concentrator
| Flow Range & Concentration | 0.5 to 5.0 LPM Continuous Flow | 93% (± 3%) Oxygen Purity |
|---|---|
| Pressure & Power Draw | 40–60 kPa Outlet Pressure | AC 115V/60Hz (< 365 Watts Draw) |
| Safety Alarm Array | High/low pressure, low purity, power outage, high temperature, line blockage |
| Dimensions & Weight | Net Weight: 35.25 lbs (16.0 kg) | Optional transfill rack compatible |
| Warranty Coverage | 3-Year Limited Manufacturer Warranty (Rhythm Resolve™) |

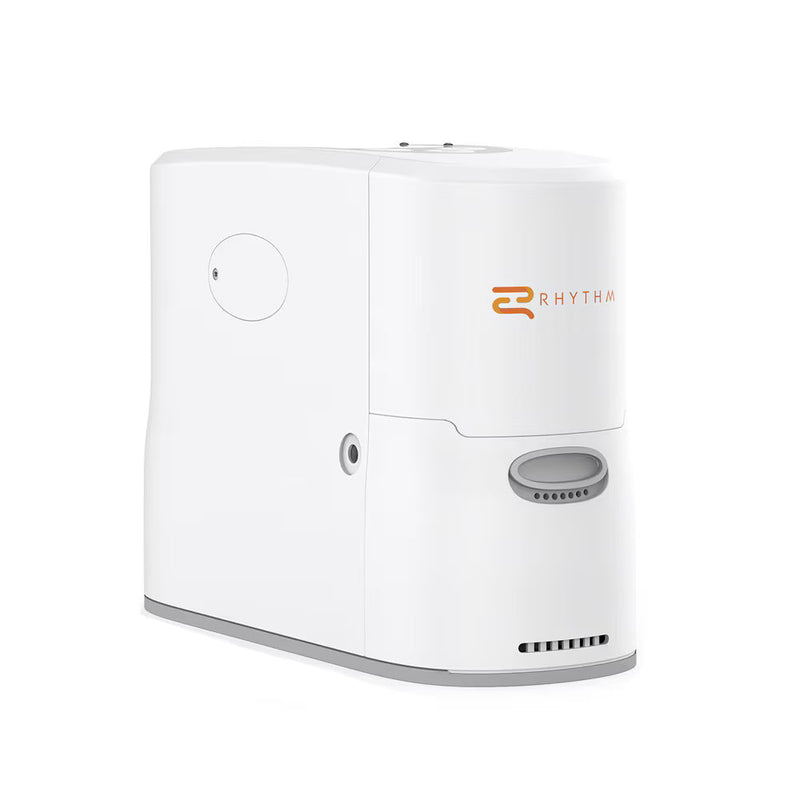

3. P2 — Ultra-Lightweight Portable Oxygen Concentrator
| Delivery Mode & Output | Pulse Dose (Settings 1–5) | Max Output: 1,000 mL/min | Warmup: 2 Min |
|---|---|
| Concentration & Sound | 87.0% to 96.0% Purity | Sound Level: 49 dBA at Setting 2 |
| Dimensions & Weight | 6.3″ H x 8.7″ D x 3.3″ W | Net Weight: 4.37 lbs (1.98 kg) with battery |
| Power & Battery Duration | AC 100–240V; DC 11–16V | Up to 5.0 Hours Runtime at Setting 1 (~4 hr recharge) |
| Warranty & Compliance | FAA Approved | 3-Year Device / 2-Year Sieve Bed / 1-Year Battery Warranty |

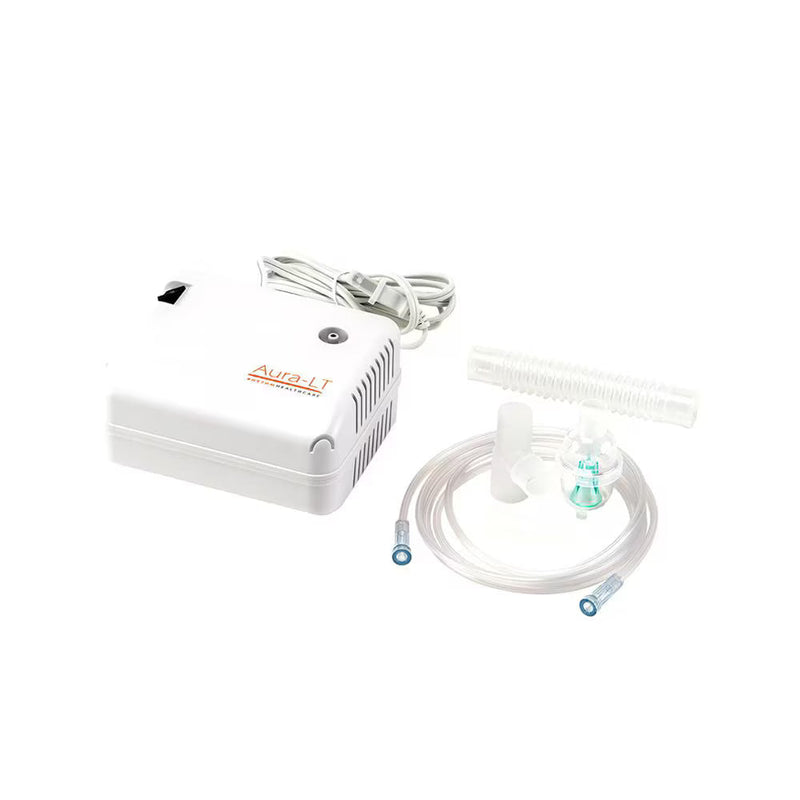

4. Aura-LT — Compressor Nebulizer System (x8 Units)
| Operating Air Flow & Power | 8–10 L/min Flow Rate | 120V/60Hz (50W Power Consumption) |
|---|---|
| Pump Mechanics | Oil-free single-cylinder piston compressor pump |
| Dimensions & Weight | 6.6″ x 5.6″ x 3.7″ | Net Weight: 3 lbs 1 oz (1.4 kg) per unit |
| Package Contents (Per Unit) | Aura-LT compressor, disposable nebulizer kit, 1.5m air tube, 6mL cup, mouthpiece |
| Warranty Coverage | 5-Year Manufacturer Limited Warranty |
Facility Procurement & Risk Mitigation Insight
Procuring the Rhythm Complete Bundle eliminates vendor fragmentation by supplying high-flow, standard-flow, mobile oxygen, and aerosol equipment under a single brand ecosystem. Backed by the Rhythm Resolve™ Replacement Program, qualifying warranty units receive immediate brand-new replacements without repair waiting periods, safeguarding institutional clinical continuity.
Product & Compliance FAQs
Q: What specific operational advantages does the Rhythm Resolve™ Warranty Program offer facilities?
A: Under the Rhythm Resolve™ program, if a concentrator encounters a manufacturing fault during its warranty term, Rhythm Healthcare ships a brand-new replacement unit directly rather than requiring the device to enter an extended repair cycle or loaner pool.
Q: How does the LM10A 10L concentrator differ from standard 5L units in clinical applications?
A: The LM10A supplies continuous flow up to 10.0 LPM at an elevated 18–22 PSI outlet pressure, providing the pneumatic force required to run large-volume nebulizers, venti-masks, and extended tubing runs up to 100 feet without pressure drops.
Q: What prescription documentation is required prior to bundle shipment?
A: Per FDA Class II medical device regulations, orders for the Rhythm Complete Bundle require a valid prescription or medical license specifying oxygen and aerosol therapy parameters prior to compliance verification and order dispatch.
B2B Procurement Disclaimer: Technical specifications, flow ratings, and regulatory guidelines are compiled from Rhythm Healthcare manufacturer standards. Facilities are responsible for verifying valid prescription documentation prior to patient deployment.
⚠ WARNING: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
