Protekt Oxygen Regulator, Cga 870 Or 540
Protekt Oxygen Pressure Regulator (CGA 870 or CGA 540)
0ā15 LPM / 0ā8 LPM / Pediatric 0ā4 LPM

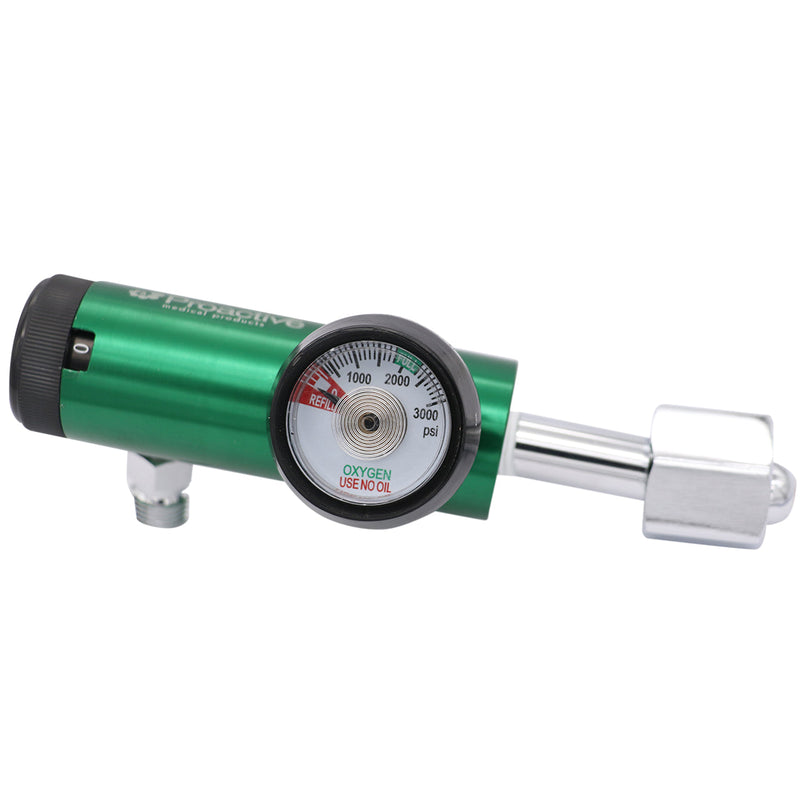

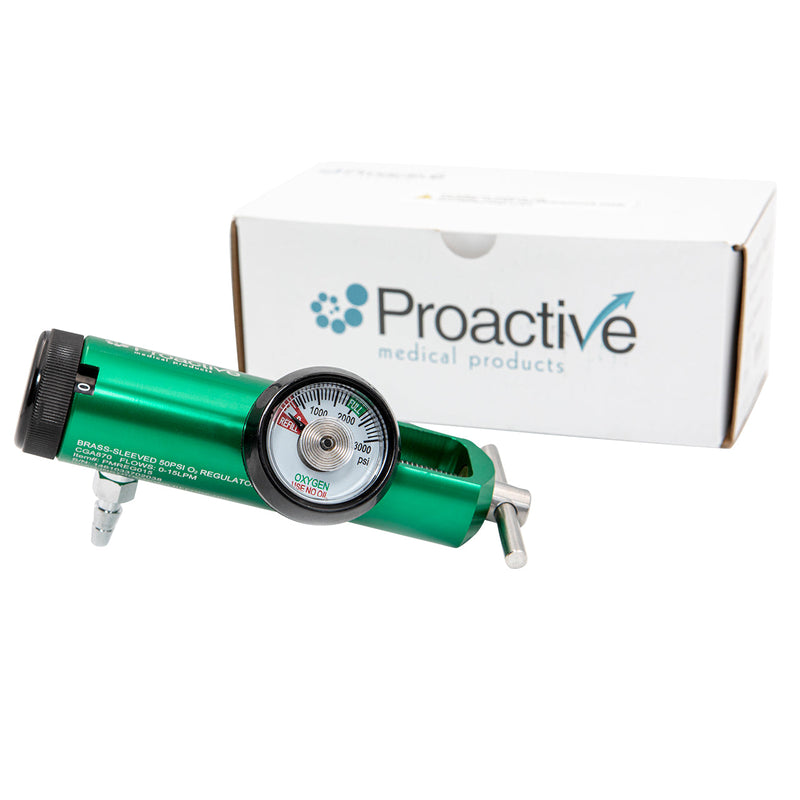

CGA 870 (Pin Index) or CGA 540 (Threaded)
Solid Brass Core with Protective Gauge
Over-The-Counter (OTC ā No Rx Required)
Executive Product Overview
The Protekt Oxygen Regulator by Proactive Medical is a commercial-grade click-style pressure control valve engineered to meter compressed medical oxygen from high-pressure storage cylinders. Constructed with a solid brass body rated for inlet pressures up to 3,000 PSI, the regulator features precision laser-etched flow orifices and a positive click-stop selector knob that prevents unmonitored flow setting drift.
Designed for institutional fleets, emergency medical transport, and home health care, the Protekt regulator incorporates an integrated 30-micron sintered bronze inlet filter to trap airborne debris and an internal safety relief valve. Available in CGA 870 pin-index yoke connections for portable cylinders or CGA 540 threaded connections for large facility tanks, the hardware complies fully with ASTM, ANSI, and CGA precision standards.
Configuration Portfolio Options
Select the specific cylinder connection, outlet fitting, and flow range required for your facility application:
| Flow Range | Chassis Size | Cylinder Connection | Outlet Fitting Standard |
|---|---|---|---|
| 0ā15 LPM Standard | Full Size | CGA 870 (Pin Index) | Single Barb Outlet |
| 0ā15 LPM Compact | Mini Size | CGA 870 (Pin Index) | Single Barb Outlet |
| 0ā15 LPM High-Pressure | Full Size | CGA 540 (Threaded) | DISS 50 PSI Threaded Outlet |
| 0ā8 LPM Mid-Flow | Full Size | CGA 870 (Pin Index) | Single Barb Outlet |
| Pediatric 0ā4 LPM | Full Size | CGA 870 (Pin Index) | Single Barb Outlet |
| Pediatric 0ā4 LPM | Full Size | CGA 540 (Threaded) | DISS 50 PSI Threaded Outlet |
Key Performance & Operational Features
- Positive Click-Stop Flow Dial: Precision mechanical detents lock into set flow rates to prevent accidental flow shifts or creeping.
- Laser-Etched Flow Orifices: Calibrated delivery ports maintain exact volumetric output meeting ASTM, ANSI, and CGA accuracy guidelines.
- Solid Brass Internal Core: Heavy-duty metallic body withstands high-use clinical transport and inlet pressures up to 3,000 PSI.
- Protective Pressure Contents Gauge: Recessed analog pressure dial provides clear visibility of remaining cylinder volume.
- 30-Micron Sintered Bronze Filter: Internal inlet screen filters particulate contaminants from high-pressure cylinder gas streams.
- Internal Safety Pressure Relief Valve: Built-in pressure blow-off mechanism protects downstream tubing from pressure surges.
Complete Technical Specifications
| Brand / Master Vendor | Proactive Medical Products (Protekt) |
|---|---|
| Product Classification | Click-Style Compressed Medical Gas Regulator |
| HCPCS Billing Code | E1353 (Oxygen Accessory ā Regulator) |
| Regulatory Tier | FDA Registered Class I Medical Device | OTC (No Rx Required) |
| Maximum Inlet Rating | 3,000 PSI Inlet Pressure Limit |
| Inlet Filtration | 30-Micron Sintered Bronze Element |
| Flow Range Options | 0ā15 LPM / 0ā8 LPM / Pediatric 0ā4 LPM |
| Connection Types | CGA 870 (Post Yoke) or CGA 540 (Threaded Fitting) |
| Outlet Types | Single Hose Barb or DISS 50 PSI Threaded Connection |
| Compliance Standards | Meets or exceeds ASTM, ANSI, and CGA performance standards |
Facility Procurement & Risk Mitigation Insight
Standardizing cylinder fleets on Protekt Click-Style Regulators eliminates flow-drift risks via laser-etched internal orifices and mechanical click detents. The solid brass construction and 30-micron sintered bronze filter protect downstream patient accessories from high-pressure particulate spikes across emergency transport and home health deployments.
Product & Compliance FAQs
Q: How do I determine whether my facility needs a CGA 870 or CGA 540 regulator?
A: CGA 870 features a pin-index yoke connection that fits post-valve post fittings on small portable cylinders (M6, C, D, and E tanks). CGA 540 features a large threaded nut connection designed for large stationary cylinders (M60, H, and K tanks).
Q: What is the clinical difference between a hose barb outlet and a DISS outlet?
A: A hose barb outlet connects directly to standard flexible oxygen tubing or nasal cannulas. A DISS (Diameter Index Safety System) outlet provides a 50 PSI threaded connection used to power medical equipment, venti-masks, or secondary flowmeters.
Q: Does purchasing a Protekt Oxygen Regulator require a medical prescription?
A: No. Under FDA regulations, oxygen regulators and flowmeter hardware sold individually are Class I medical accessories and do not require a prescription. However, compressed medical oxygen gas supplied inside cylinders remains a prescription drug.
B2B Procurement Disclaimer: Technical specifications, pressure ratings, and regulatory billing descriptors (HCPCS E1353) are compiled from Proactive Medical standards. Facilities are responsible for verifying cylinder fitting compatibility prior to deployment.
