B120C Semi Electric Homecare Bed
CostCare B120C Semi-Electric Homecare Bed
CostCare B120C
450 lbs
15.4" – 23" (manual crank)
Reinforced Welded Steel
Executive Product Overview

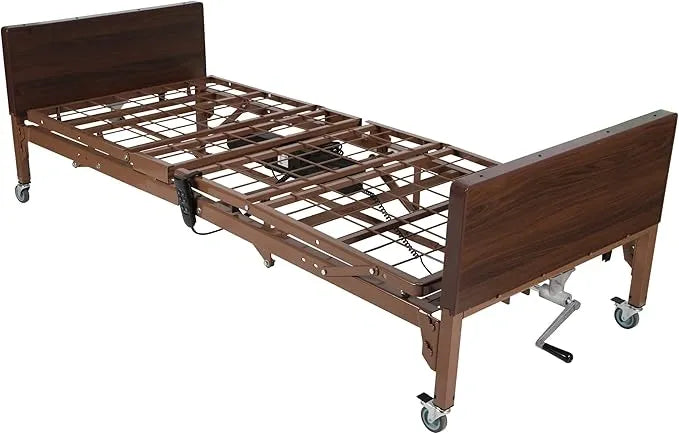

The CostCare B120C Semi-Electric Homecare Bed is a sectional, dual-motor positioning platform engineered for extended bed rest, post-surgical recovery, and progressive mobility conditions in the home or long-term care setting. Independent motorized head (0°–65°) and knee/foot (0°–40°) articulation is controlled via hand pendant, allowing the patient to adjust positioning for respiratory and digestive comfort without waiting on a caregiver, while reducing pressure risk and supporting circulation.
Constructed of reinforced, heavy-gauge welded structural steel in a split-frame configuration, the B120C supports up to 450 lbs on a sag-resistant wire deck that distributes load evenly and improves airflow beneath the mattress. The two-piece frame separates for maneuvering through narrow residential hallways and doorways during delivery. Overall frame height (15.4"–23") is managed manually via a detachable hand crank, keeping the bed's base position mechanically fixed and predictable for safe patient transfers.
Key Technical & Operational Features

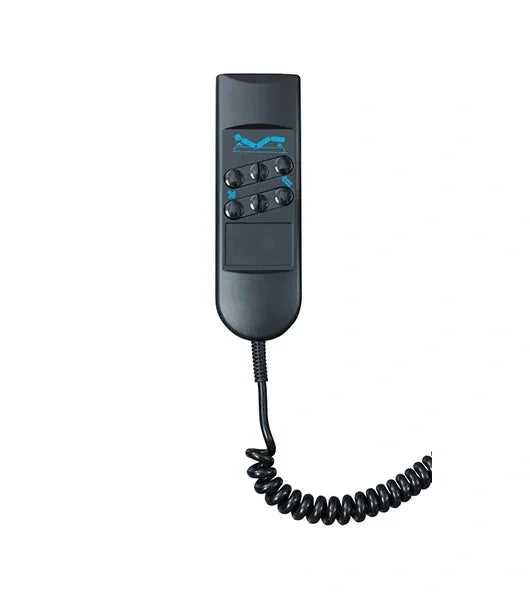

- Independent Dual-Motor Profiling: Motorized backrest (0°–65°) and knee break (0°–40°) via low-voltage actuators and hand pendant control.
- Sag-Resistant Wire Deck Surface: Open wire matrix distributes body weight evenly, preventing mattress sagging and supporting airflow beneath the patient.
- Maneuverable Split-Frame Geometry: Two-piece frame separates cleanly for transport through narrow corridors and stairwells.
- Ergonomic Manual Height Crank: Detachable hand crank adjusts overall frame height between 15.4" and 23" for safe caregiver transfers.
- Emergency Power Interruption Safety: Dedicated terminal block connects a standard 9V battery to the motor casing for manual-override adjustment during power outages; battery replacement recommended every 12 months.
- Reinforced 450 lb Weight Capacity: Heavy-gauge welded steel construction resists structural twisting or bowing under sustained loading.

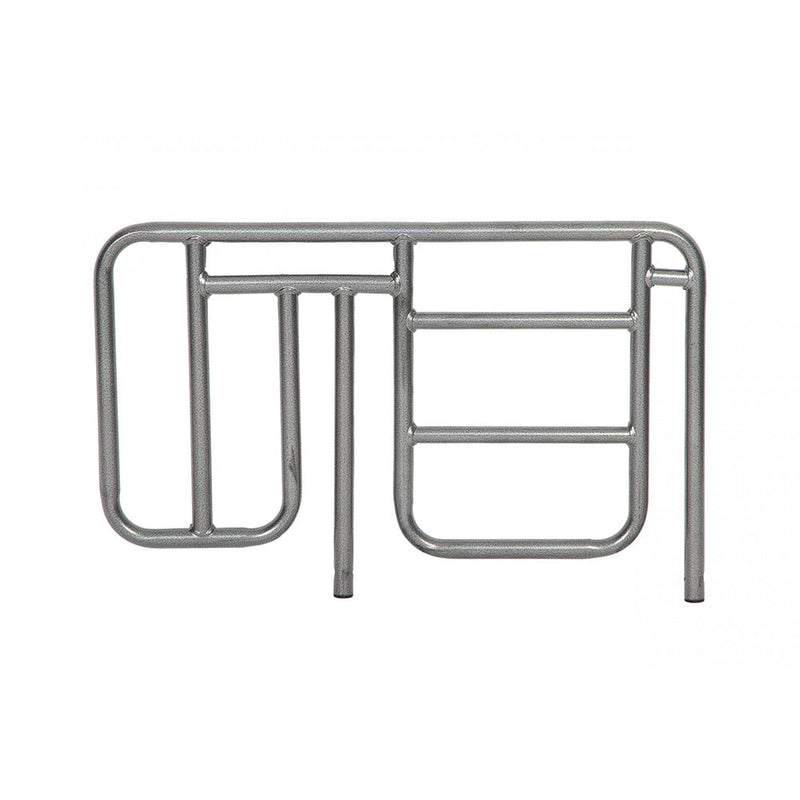

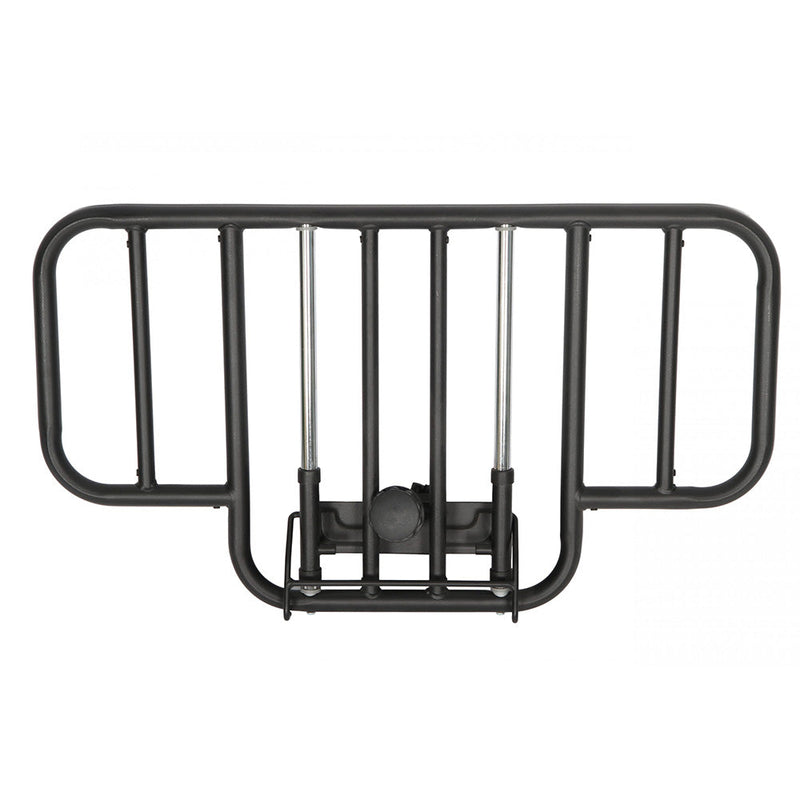

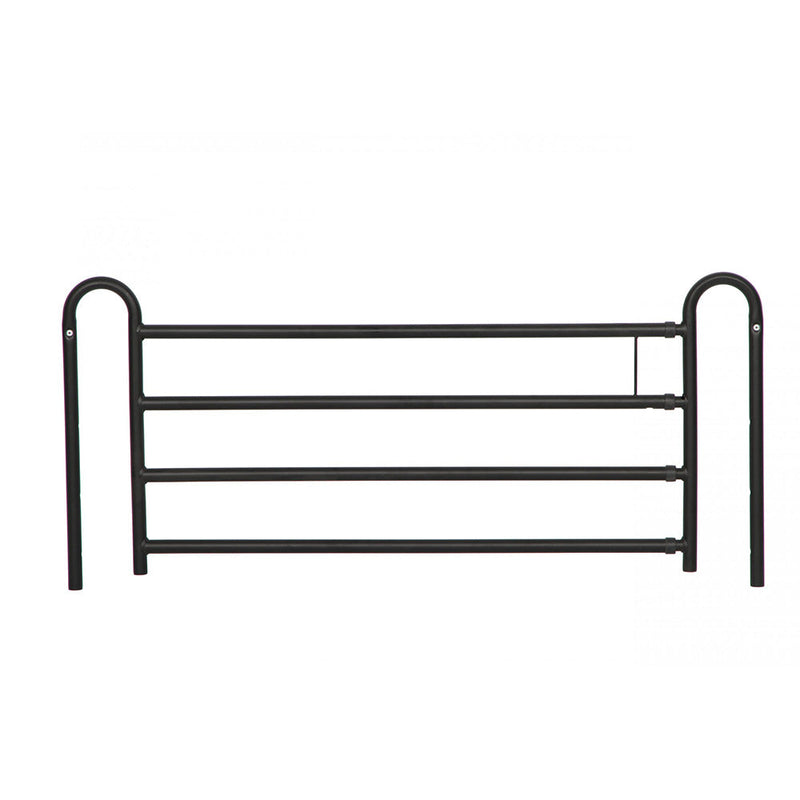

- Custom Safety Side Rail Selection: Available configured with no rails, clamp-on half rails, or full-length containment bars with crossbars.
Facility Procurement & Risk Mitigation Insight
Standardizing on the B120C gives facilities a mechanically predictable positioning platform — the fixed manual-crank height stage reduces accidental-drop risk during transfers, while the sectional frame simplifies delivery logistics across varied residential and facility layouts, supporting consistent staff training and workflow standardization.
Complete Technical Specifications
| Brand | CostCare |
| Model / MPN | B120C |
| Product Category | Sectional Semi-Electric Residential Positioning Framework |
| Frame Material | Reinforced, heavy-gauge welded structural steel |
| Deck Type | Wire mattress platform |
| Head Elevation Range | 0° – 65° (motorized) |
| Knee / Foot Elevation Range | 0° – 40° (motorized) |
| Frame Height Range | 15.4" – 23" (manual crank) |
| Weight Capacity | 450 lbs |
| Side Rail Options | No-rail / clamp-on half rails / full-length containment bars with crossbars |
| Emergency Backup Power | 9V battery terminal block (replace every 12 months) |
Procurement & Compliance FAQs
What is the difference between the B120C semi-electric bed and a full-electric model?
On the B120C, the head and foot sections are fully motorized and adjusted via the hand control pendant. Overall bed frame height is adjusted manually using the hand crank at the foot of the bed. A full-electric model motorizes all three adjustments, including height.
How should the emergency backup battery system be maintained?
The bed's terminal block connects a standard 9V battery directly to the motor casing. Install a fresh battery during initial assembly and replace it every 12 months to ensure the head and foot sections can still be lowered manually during a power outage.
Does EnhDme-Pro accept institutional Purchase Orders (POs) and tax-exempt accounts?
Yes. EnhDme-Pro works directly with healthcare facilities, government entities, and corporate procurement departments. Tax-exempt documentation and terms accounts can be established prior to ordering.
B2B Procurement Disclaimer: EnhDme-Pro operates strictly as a direct-sale wholesale distributor. Technical specifications and manufacturer data are compiled for facility asset verification prior to purchase. HCPCS and other billing codes should be confirmed directly with the manufacturer prior to reimbursement submission.
